U-NACSⅡ
Fully automatic cylinder cabinet
The U-NACS II is a sophisticated cylinder cabinet offering
essential functionality, while ensuring safety, quality,
functionality, and ease of use.
To meet diversifying customer needs, options can be freely
combined to tailor specifications for individual needs.
Features
- Minimum footprint
- Characterized by a simple, yet sophisticated design,
built to facilitate cylinder replacement. - Ease of use
- Features a 10.4-inch color LCD touch screen.
The auto purge is performed in a user-friendly dialog sequence. - Free piping design
- A choice of purge functions (connecting pipe types) is
available for various gas properties. - Enhanced usability
- Totally redesigned screen display, greatly improving visibility of
information. Required actions and comments are shown as
context-specific pop ups. The entire purge process and
current stage are also shown.
Specifications

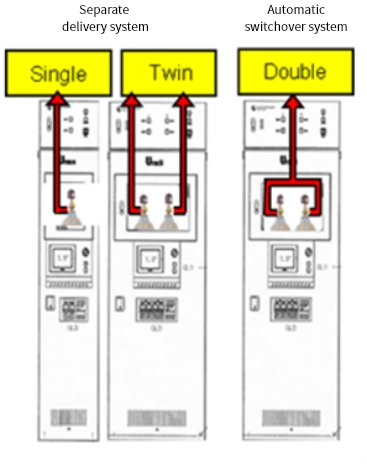

| Model | Dimensions W×D×H (mm) |
|---|---|
| Single | 500×600×2150 |
| Twin / Double | 800×600×2150 |
*More cylinders can be stored for applications involving large gas consumption.
| Connecting pipe Type |
Recommended gas | Structure | Cost | Vent gas flow rate |
|---|---|---|---|---|
| A | Highly corrosive gas | Block valve | High ↑ Low |
Small ↓ Large |
| D (former B) | Toxic or corrosive gas | Pigtail + vent valve | ||
| C | Non-toxic flammable gas Oxidant gas |
Pigtail |
